דגם מכשיר
|
SH-4050A5N-5L
|
|
דגם מצלמות
|
DI-33K0AB-28 כיפה
,

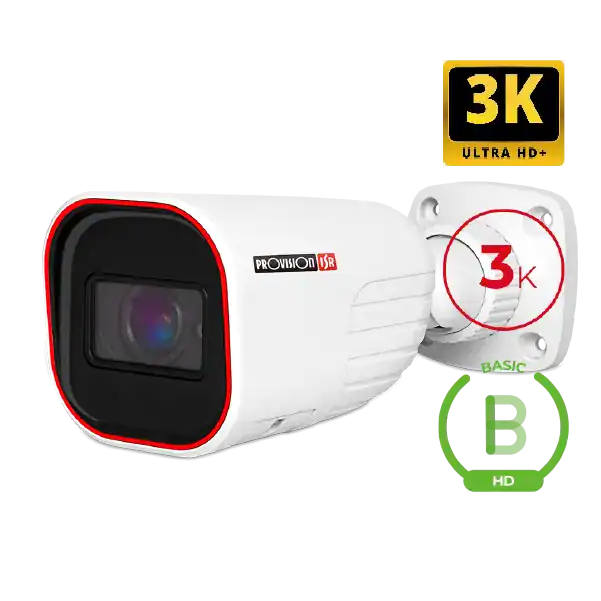

I2-33K0AB-28 צינור
|
|
מה כולל הקיט
|
מכשיר הקלטה + 4 מצלמות כיפה או צינור ברזולוציה 3K
|
|
יצרן
|
Provision-ISR
|
|
System Compression Format
|
H.265 (HEVC) / H.264
|
|
ONVIF
|
Yes (For IP Channels)
|
|
Format
|
“All in 1” Hybrid (AHD / CVI / TVI / CVBS + IP)
|
|
Video Input Max. IP
|
0CH Standard BNC + 6CH IP (Over Network)
|
|
Video Input Max. Analog
|
4CH Standard BNC + 2CH IP (Over Network) – Default Setting
|
|
Audio Input
|
1CH RCA (2.0 Vp-p, 1 kΩ)1CH (+IP Cameras)
|
|
Audio Output
|
1CH RCA (2.0 Vp-p, 1 kΩ)(+IP Cameras)
|
|
Two Way Audio
|
Yes
|
|
Record/ Main Stream AHD
|
5MP Lite: Up to 10FPS Per Channel, 4MP Lite / 2MP: Up to 12/15FPS Per Channel, 2MP Lite /
1MP: Up to 25/30FPS Per Channel
|
|
Record/ Main Stream TVI
|
5MP Lite: Up to 10FPS Per Channel, 4MP Lite / 2MP: Up to 12/15FPS Per Channel, 2MP Lite /
1MP: Up to 25/30FPS Per Channel
|
|
Record/ Main Stream CVI
|
4MP Lite / 2MP: Up to 15/12FPS Per Channel, 2MP Lite / 1MP: Up to 25/30FPS Per Channel
|
|
Record/ Main Stream CVBS
|
960H: Up to 30/25FPS Per Channel
|
|
Record/ Main Stream IP
|
5MP / 4MP / 3MP / 2MP / 1MP: Up to 25/30FPS Per Channel
|
|
Master Streams over Network
|
Up to 4Ch@Recording Resolution (Up to 40Mbps)
|
|
Sub Stream HD Analog
|
1-25/30FPS@720P Per Channel (FPS Restricted to Master Stream FPS)
|
|
Sub Stream CVBS
|
1-25/30FPS@D1 Per Channel
|
|
Sub Stream IP
|
1-25/30FPS@D1 Per Channel
|
|
Sub-Streams over Network
|
Restricted to 40Mbps
|
|
User Access
|
5 Users Online with Professional Autorithy Management
|
|
Recording Modes
|
Schedule, Manual, Motion, Sensor, Analytics, POS
|
|
Applications
|
Provision Cam2 for iOS/Android, IE for Windows 7/8/10, Safari for Mac OS, CMS for Windows/
MAC
|
|
Bandwidth Incoming
|
40Mbps (For 6 IP Channels) / 16Mbps (For 2 IP Channels)
|
|
Bandwidth Outgoing
|
40Mbps
|
|
Playback Local / Remote
|
4CH / 4CH
|
|
Playback Search Mode
|
Time-Slice, Time, Event, File Management, Smart Search
|
|
Analytics For HD Analog Cameras
|
Line Crossing (No Direction Choice), Sterile Area, Smart Search
|
|
Analytics For IP Cameras
|
Line Crossing (With Direction Choice), Sterile Area, Item Monitoring, Camera Tampering, Smart
Search
|
|
Backup USB
|
2 USB 2.0 Port
|
|
Backup Format
|
AVI/DAT
|
|
Alarm Input
|
IP Cameras only
|
|
Alarm Output
|
IP Cameras only
|
|
HDD Storage
|
1 SATA (8TB)
|
|
Storage E-SATA
|
None
|
|
PTZ Connection
|
RS-485 / CoC / IP-Over Network
|
|
PTZ Supported Protocols
|
Pelco D, Pelco P, Samsung, Visca, ONVIF, CoC
|
|
Network Ethernet
|
100 Mbps (RJ-45)
|
|
Network Protocols
|
TCP/IP, DHCP, DDNS, NTP, SMTP, RTSP, HTTPS, FTP, SNMP, P2P, POS
|
|
מידות
|
W255xD220xH43mm
|
|
IR Controller
|
Yes
|
|
Power Supply
|
12V/2A
|
|
Operation Temperature
|
0°C ~50°C
|
