מותג
|
Provision-ISR
|
|
דגם
|
DH-340IPSN-28
,

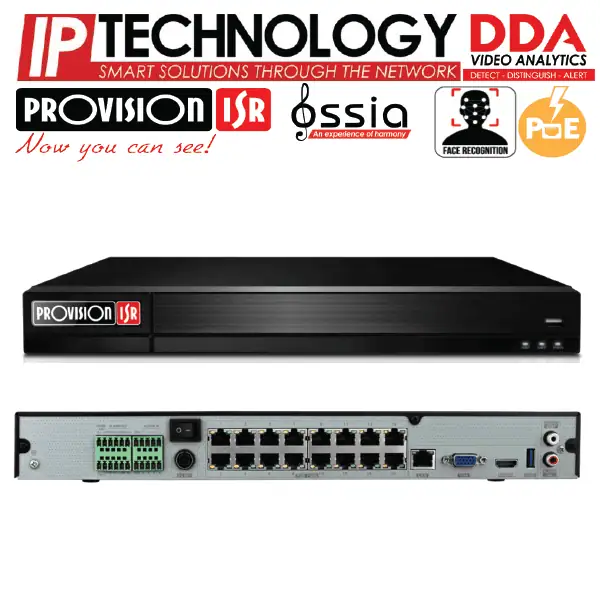

NVR12-16400PFAN-1U-2T
|
|
מספר ערוצים
|
16CH
|
|
רזולוציה
|
12MP
|
|
נפח דיסק קשיח
|
2TB
|
|
קיבולת נפח דיסק מקסימלית
|
10TB
|
|
PoE
|
כולל סוויץ' PoE מובנה
|
|
דגם NVR
|
NVR8-16400PFAN משולב אנליטיקה ו-PoE
|
|
דגם מצלמה
|
DH-340IPSN-28
|
|
אחריות
|
אחריות למשך 24 חודשים
|
|
Video Input
|
16Ch Over Network / PoE Direct Connection
|
|
Video Output
|
HDMI (4K@60Hz, 4K@30Hz, 1080P), VGA (1080P, 1280×1024, 1024×768)
|
|
Video View Mode
|
Mirrored
|
|
Decoding Format
|
H.265 / H.265+ / H.265S / H.264
|
|
Decoding Capabilities
|
1Ch – 8MP ; 4Ch – 2x8MP + 2x5MP ; 9/16Ch – 1MP
|
|
Audio Output
|
1CH RCA (2.0 Vp-p, 1 kΩ) + IPC Inputs
|
|
Compression
|
G.711A/G.711U
|
|
Two Way Audio
|
Yes
|
|
Analytics Channels
|
16Ch (Requires supporting IPC)
|
|
Supported Analytics
|
Camera Tampering, Line Crossing (DDA / Pixel Based), Sterile Area (DDA / Pixel Based), Object
Monitoring, Object Counting (DDA), Crowd Gathering, People Intrusion, Smart Search, Face Recognition, LPR
|
|
Face Recognition Rate
|
180 Faces per minute (All Channels) / 3 Faces per second (Single Channel)
|
|
Incoming
|
160Mbps
|
|
Outgoing
|
160Mbps
|
|
Real-Time Recording
|
16CH 8MP Real-Time
|
|
Record Type
|
Video / Video + Audio
|
|
8MP
|
480FPS (NTSC)/400FPS (PAL)
|
|
5MP and lower
|
480FPS (NTSC)/400FPS (PAL)
|
|
Master stream over network
|
Up to 16CH@Recording Resolution
|
|
Resolution
|
Depends on IPC
|
|
Sub-Streams over Network
|
Up to Outgoing Bandwidth Capacity
|
|
General Recording Modes
|
Schedule, Manual, Motion, Sensor, Analytics, POS and all of its combinations
|
|
User Access
|
10 Users Online with Professional Autorithy Management
|
|
Mobile App
|
Provision Cam2 for iOS/Android
|
|
PC/Mac Software
|
Ossia VMS Standard / Enterprise
|
|
Plug-in free Web-Browser
|
Chrome, FireFox, Safari, Edge, Opera.(All Limited to 4Ch Live View / Playback)
|
|
Plug-in based Web-Browser
|
Internet Exporer
|
|
Local Playback
|
16Ch
|
|
Remote Playback (Web, App, VMS)
|
16Ch
|
|
Search Mode
|
DDA Object, Smart Search, LPR, Face Recognition, Time-Slice, Time, Event, POS
|
|
USB
|
1 USB 2.0 Port + 1 USB 3.0 Port
|
|
Backup Format
|
AVI (Unencrypted) / Private Format (Encrypted / Unencrypted)
|
|
Alarm Input
|
8+IPC
|
|
Alarm Output
|
4+IPC
|
|
HDD Storage
|
2
|
|
Storage E-SATA
|
None
|
|
Max Capacity
|
16TB (Up to 8TB Each)
|
|
RAID
|
N/A
|
|
Connection
|
Via Network
|
|
Supported Controls
|
Pan, Tilt, Zoom, Preset, Cruise, Scan, Iris, Focus
|
|
RS-485
|
Yes (C06 Keyboard Connection)
|
|
Network Ethernet
|
1000/100/10Mbps self-adaptive Ethernet interface
|
|
Network Protocols
|
TCP/IPv4/IPv6, DHCP, DDNS, NTP, SMTP, SSL/TLS, UPnP, P2P, RTSP, FTP, HTTPS, 820.1X,
SNMP, Auto Report (Ossia VMS)
|
|
ONVIF
|
Full Device Support (Profle T/G, ONVIF Version 20.12)
|
|
PoE Ports
|
16xRJ45
|
|
PoE Speed
|
10/100Mbps (10Mbps Under CCTV Mode)
|
|
PoE Standard
|
PoE (IEEE802.3AF)
|
|
PoE CCTV Mode
|
Yes (Up to 200m and 10Mbps bandwidth)
|
|
PoE Total Power
|
150W (Avarage 14.25W Per Channel)
|
|
Max. Power Output (Per Ch.)PoE
|
~14W*
|
|
Power Supply
|
48V/3.75A
|
|
Power consumption (No HDD)
|
15W
|
|
מידות
|
W375xD275xH50mm
|
|
Operation Temperature
|
0-50C
|
